Active Directory Infrastructure Lab

Description

‍

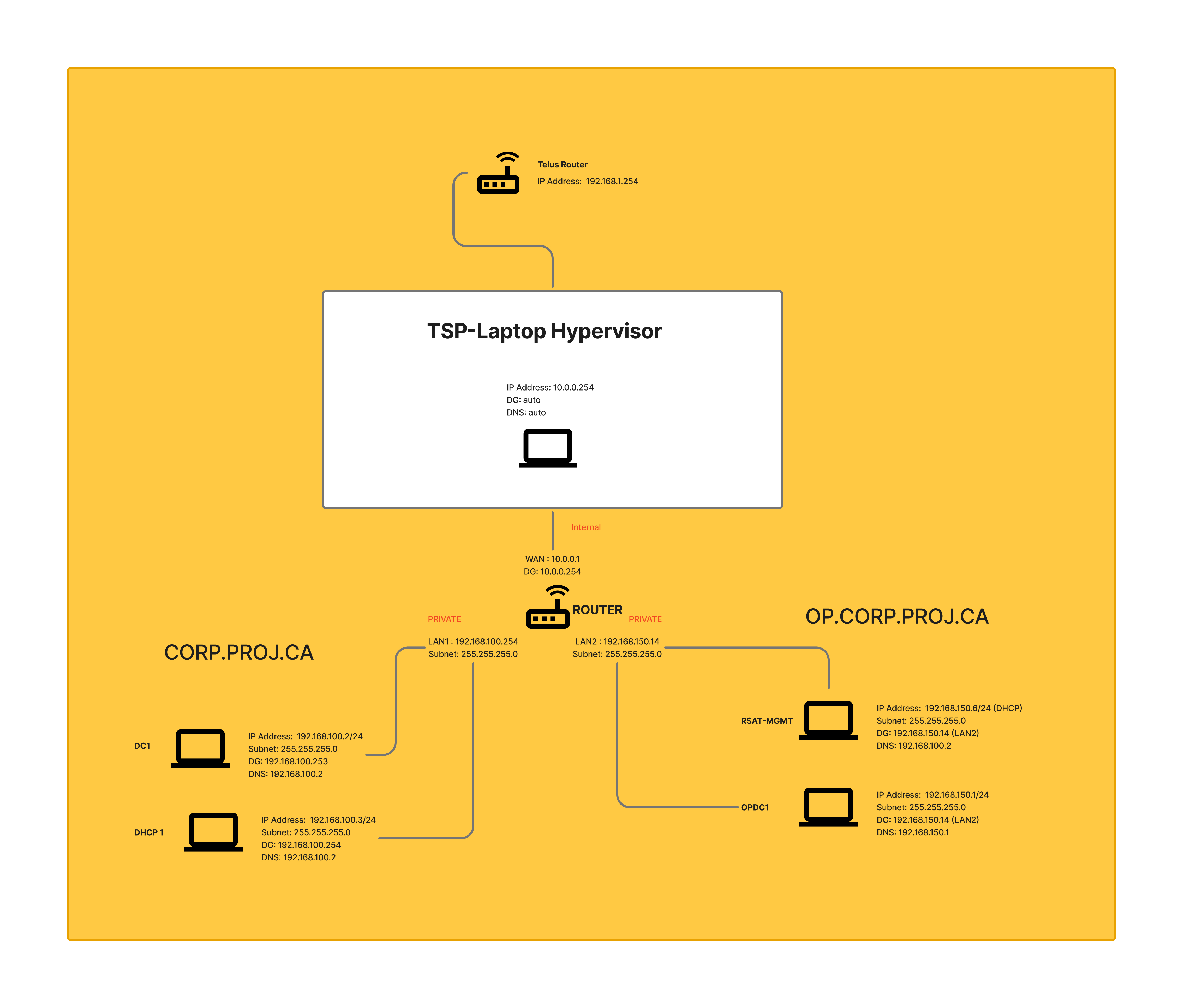

Designed and deployed a simulated small-to-medium businessnetwork using Hyper-V virtual machines. The environment includes a router,domain controller, secondary domain controller, DHCP server, and an RSATmanagement client used for centralized administration.

Most servers run Windows Server Core to reflect real-world serverdeployments, while a Windows Server 2025 GUI client with RSAT is used fordomain and infrastructure management.

Configured multiple network segments using Hyper-V virtualswitches, including LAN1-Private, LAN2-Private, and an Internal switchconfigured for NAT.

Implemented Active Directory Domain Services to manage users, roles, and domain resources. Created a dedicated administrative account structure to manage systems and services across all domain-joined servers and clients.

Tech Stack

‍

WindowsServer 2025 (GUI & Core) • Hyper-V • Active Directory • DHCP • RSAT •PowerShell • NAT Networking
